1. Type: 85DM2-300V AC
2. Power Supply: Self powered
3. Accuracy: + / -1% + / -2LSB
85DM2-300V AC Dual Value Digital Meter adopt MCU and integrate two measure unit, it is miniature, accuracy, and more cost-effective. Manual type has a micro switch on panel can change displaying value conveniently, Auto type change to display automatically, one DM2 digital meter can use as two, and save space and bring more economy for user. 85DM2 suit to power supply and others that need display two value such as input/output volt, output volt/amp, and so on.
Main Specification
1. Type: 85DM2-300V AC
2. Power Supply: Self powered
3. Accuracy: + / -1% + / -2LSB
4. Sample speed：about 10time / sec.
5..LED size / color：0. 56' / red or green，blue, The first option color is red.
6. Measure Range: 50-300V AC
7. Over Range: display 'H'
8. A / D convert and MCU measuring and software adjusting

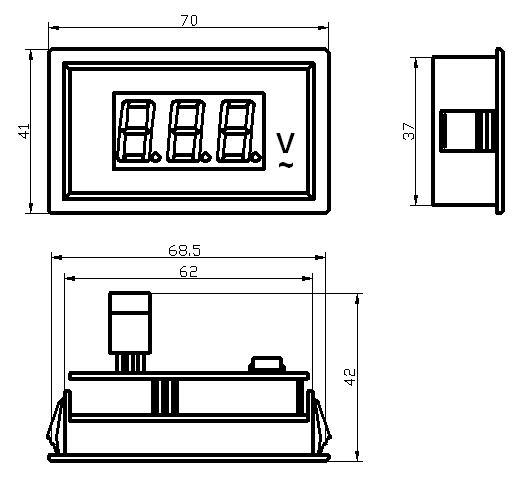

Dimension and Mounting Size
