1. Description: 85DM3-300V AC/50A AC/40-70Hz
2. Self powered，four wire.
3. Accuracy:±1% ±2LSB
4. Sample speed:about 10time / sec
Product Description
85DM3AVHZ Digital Meter adopt MCU and integrate two measure unit, it is miniature, accuracy, and more cost effective，save space for user. A micro switch on panel can change displaying current, voltage or frequency conveniently. 85DM3-AVHZ suit to power supply and others that need display amp(0-50A),volt(50-300V) and Hz(40-75Hz).
Main Specification:
1. Description: 85DM3-300V AC/50A AC/40-70Hz
2. Self powered，four wire.
3. Accuracy:±1% ±2LSB
4. Sample speed:about 10time / sec
5. LED size / color:0. 56' / red or green, blue
6. Over Range:display 'H'
7. MCU measuring with software adjusting
Dimension and Mounting Size

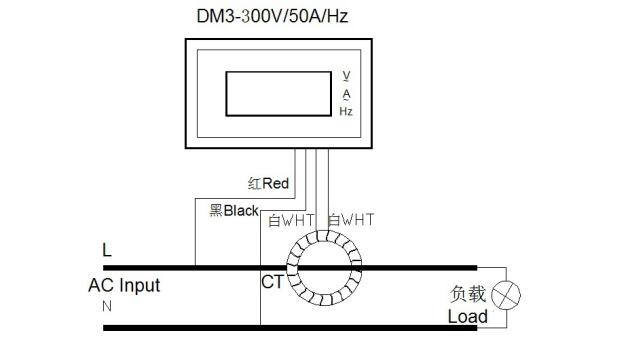

Connection Diagram
