1. Power Supply：9V AC/DC
2. Accuracy: ±1% ±2LSB
3. Sample speed: about 10time / sec.
4. LED size / Color：0.56' RED
Product Description
85DM3-kVA Digital Meter adopt MCU and integrate two measure unit, it is miniature, accuracy, and more cost-effective， save space for user. A micro switch on panel can change displaying current, voltage or capacity conveniently . 85DM3 suit to power supply and others that need display amp,volt and KVA.
Main Specification
1. Power Supply：9V AC/DC
2. Accuracy: ±1% ±2LSB
3. Sample speed: about 10time / sec.
4. LED size / Color：0.56' RED
5. Measure Range: 0~500V AC/0~150A AC/0~75kVA
0-500V AC/0-50A AC/0-25KVA
6. Over Range: display 'H'
7. A / D convert and MCU measuring and software adjusting

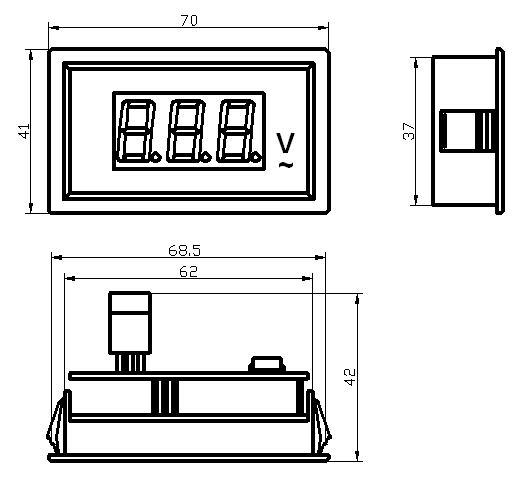

Dimension and Mounting Size

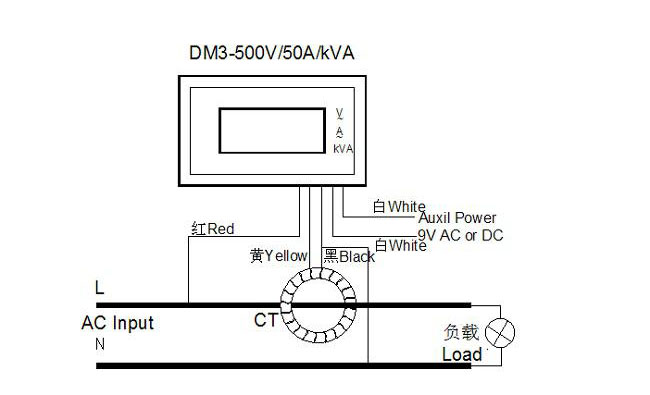

Connection Diagram
