1. Specification: 85DMC-50V DC
2. Auxiliary POWER : 9V AC/DC ±10%
3. DISPLAY ACCURACY : ±1%±2LSB
Product Description
85DMC series digital voltmeter adopt MCU as center, integrating ADC module and LCD driver inside, Its outside circuit is simple and reliable. This series digital meter is cost effective, miniature, flexible, usually it is used to take place of 85L17 series analog panel meter and is suitable to power supply and other machine for displaying voltage& current,and so on.
Technical Data
1. Specification: 85DMC-50V DC
2. Auxiliary POWER : 9V AC/DC ±10%
3. DISPLAY ACCURACY : ±1%±2LSB
4. SAMPLE SPEED ：About 10 times/sec.
5. LCD DIMENSION: 0.75' Blue backlight
6. MAXIMUM DISPLAY ： 500
7. OVER RANGE：Display "H"
8. A/D CONVERTER, MCU MEASURING WITH SOFT ADJUSTING.

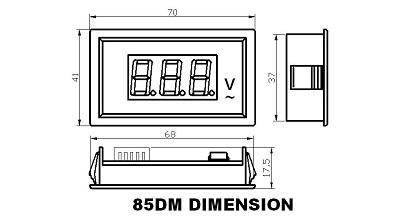

Dimension and Mounting Size
