85DMC1-300V AC (50-300V AC)
Power: Self powered, two wire, more easy for connection
Accuracy:±1%±2LSB
Product Description
85DMC1 series digital voltmeter is an intelligent meter adopting MCU measuring and software adjusting technology. It is cost-effective, miniature, flexible, and is useful to voltage stabilizer and other device for measuring voltage and current, and so on. Further this series digital voltmeter can be developed as control unit fo stabilizer and other device.
Technical Data
Specification: 85DMC1-300V AC (50-300V AC)
Power: Self powered, two wire, more easy for connection
Accuracy:±1%±2LSB
Sample Speed: about 10 times/sec.
LCD DISPLAY WITH BACK LIGHT: Blue
Maximum Display: 500
Over Range: Display 'H'
A/D CONVERTER, MCU MEASURING WITH SOFT ADJUSTING.

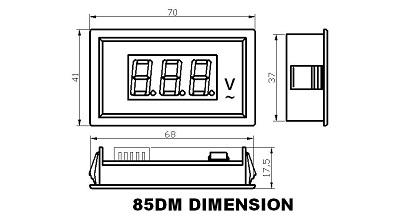

Dimension and Mounting Size

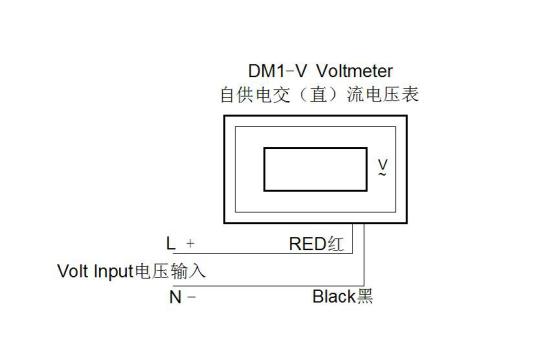

Connection Diagram
