85DM1-150A AC
Power: 220V AC
Accuracy: ±1%±2LSB
Sample Speed: about 10 times/sec.
Product Description
85DM1 series digital ampere meter is an intelligent meter adopting MCU measuring and software adjusting technology. It is cost-effective, miniature, flexible, and is useful to voltage stabilizer and other device for measuring voltage and current, and so on.
Technical Data
Specification: 85DM1-150A AC
Power: 220V AC
Accuracy: ±1%±2LSB
Sample Speed: about 10 times/sec.
LED Size/ Color: 0.56’ Red, Blue, Green for selection
Maximum Display: 500
Over Range: Display 'H'
Dimension: 70*41
Reliable, long life, MCU measuring

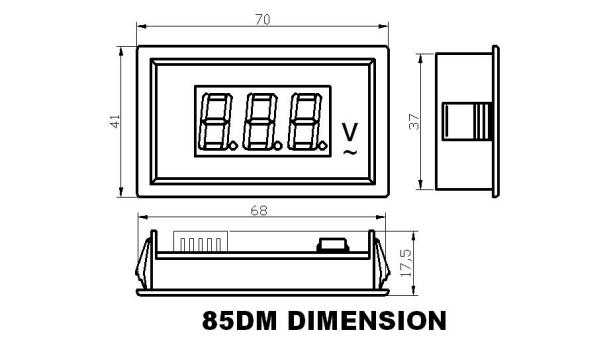

Dimension and Mounting Size

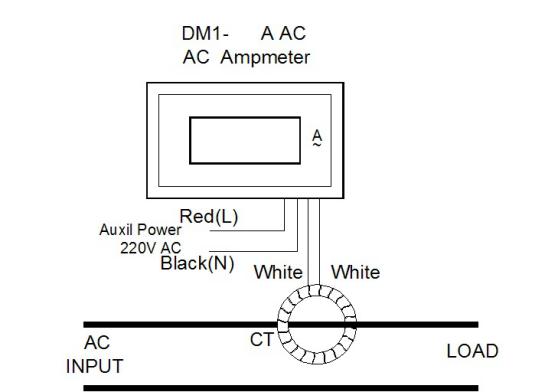

Connection Diagram
