85DM -5A DC (0-5A DC)
Auxiliary power: 9V AC/DC ±10%, <2VA
Accuracy: ±%±2LSB
Sample Speed: about 10 times/sec.
Product Description
85DM series digital meter use MCU measuring and software adjusting technology. It is cost-effective, miniature,flexible. This series digital meter is useful in measuring current amp. It can be used in stabilizer and other device.
Main Technical information:
Description: Digital Dc amp meter
Specification: 85DM -5A DC (0-5A DC)
Auxiliary power: 9V AC/DC ±10%, <2VA
Accuracy: ±%±2LSB
Sample Speed: about 10 times/sec.
LED Size/ Color: 0.56’Red, Blue, Green for selection
Maximum Display: 500
Over Range: Display 'H'
MCU measuring and soft adjusting
WITHOUT SHUNT

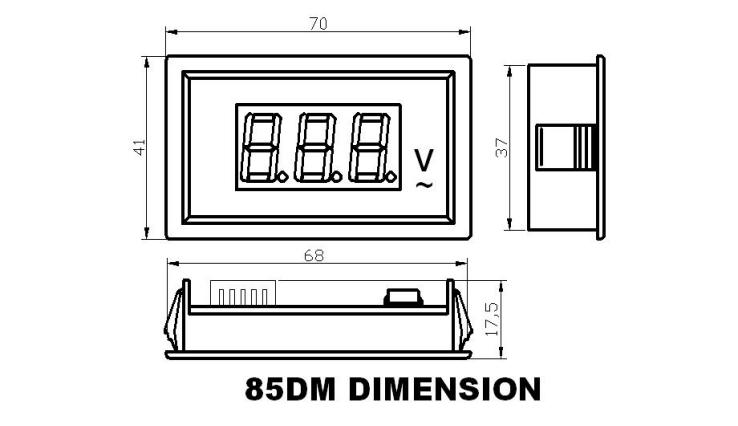

Dimension and Mounting Size

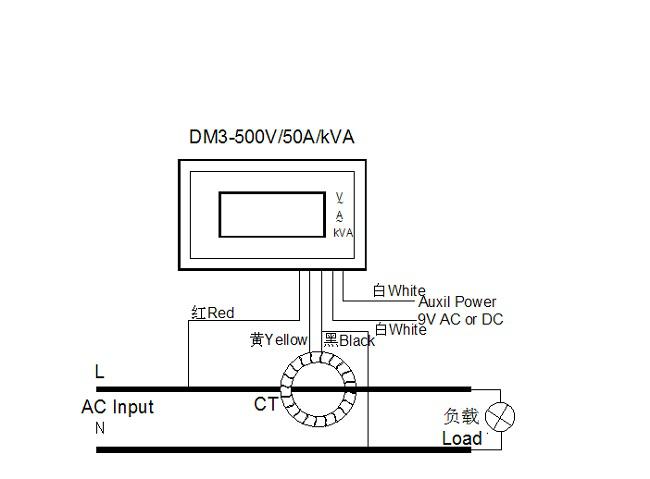

Connection Diagram
