85DM-5V DC
Power: 5V AC/DC
Measure range: 0-5V DC
Sample Speed: about 10 times/sec.
Product Description
85DM series digital meter is an intelligent meter adopting MCU measuring and software adjusting technology. It is cost effective, miniature,flexible, and is useful to voltage stabilizer and other device for measuring voltage and current , and so on. Further this series digital
meter can be developed as control unit for stabilizer and other device.
Specification: 85DM-5V DC
Power: 5V AC/DC
Measure range: 0-5V DC
Sample Speed: about 10 times/sec.
LED Size/ Color: 0.56’ Red, Blue and Green
Maximum Display: 4.99
Over Range: Display 'H'
Accuracy: ± 1% ± 2LSB
Reliable, long life, MCU measuring

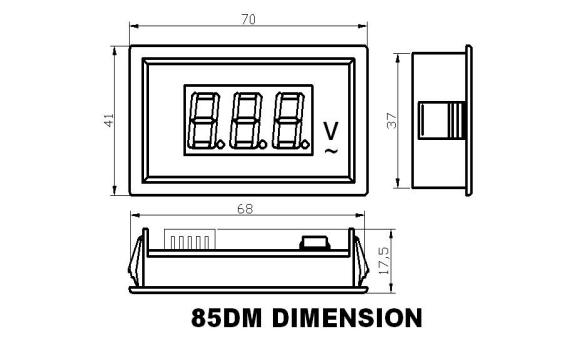

Dimension and Mounting Size

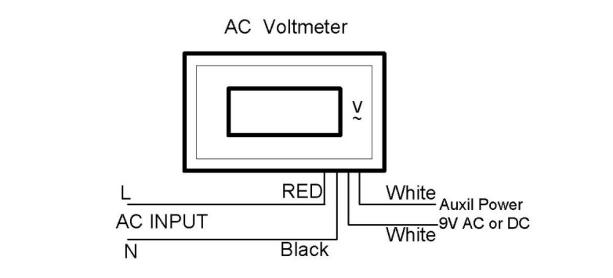

Connection Diagram
