85DM1-100V DC
"Self-Powered", No External Power Required
Easy to Install - Only Two Connections
Voltages: 20-100V DC
Accuracy: ±1%±2LSB
Product Description
85DM1 series dc voltage digital panel meter is an intelligent meter adopting MCU measuring and software adjusting technology. It is cost-effective, miniature, flexible, and is useful to voltage stabilizer and other device for measuring voltage and current, and so on. Further this series digital voltmeter can be developed as control unit for stabilizer and other device.
Technical Data
Specification:
85DM1-100V DC
"Self-Powered", No External Power Required
Easy to Install - Only Two Connections
Voltages: 20-100V DC
Accuracy: ±1%±2LSB
Reliable, long life, MCU measuring
Replacements for 2-Wire Analog Meters
Sample Speed: about 10 times/sec.
LED Size/ Color: 0.56’ Red, Blue, Green for selection
Maximum Display: 49.9
Over Range: Display 'H'

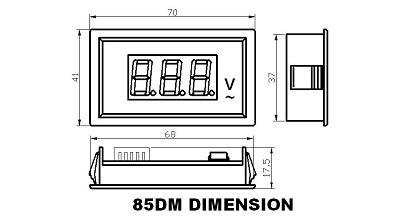

Dimension and Mounting Size

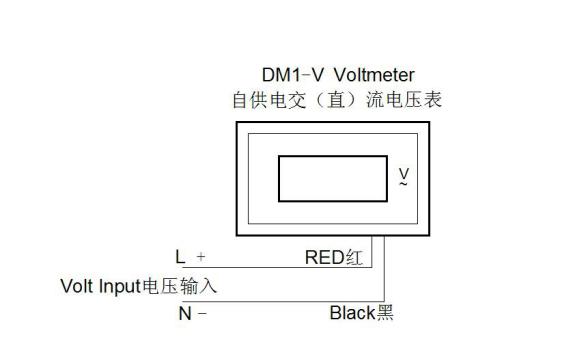

Connection Diagram
