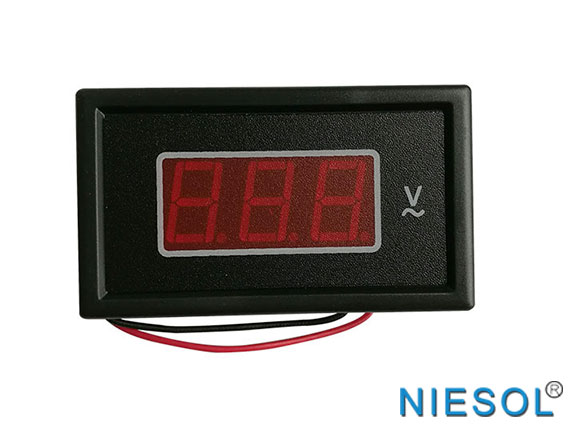

85DM1-500V AC (50-500V AC)
"Self-Powered", No External Power Required
Easy to Install - Only Two Connections
Voltages: 50-500V AC
Product Description
85DM1 series digital voltmeter is an intelligent meter adopting MCU measuring and software adjusting technology. It is cost-effective, miniature, flexible, and is useful to voltage stabilizer and other device for measuring voltage and current, and so on. Further this series digital voltmeter can be developed as control unit for stabilizer and other device.
Specification: 85DM1-500V AC (50-500V AC)
"Self-Powered", No External Power Required
Easy to Install - Only Two Connections
Voltages: 50-500V AC
Resolution to 1V; Accuracies to ± 1%, ± 2LSB
Reliable, long life, MCU measuring
Replacements for 2-Wire Analog Meters
Sample Speed: about 10 times/sec.
LED Size/ Color: 0.56’ Red, Blue, Green for selection
Maximum Display: 500
Over Range: Display 'H'

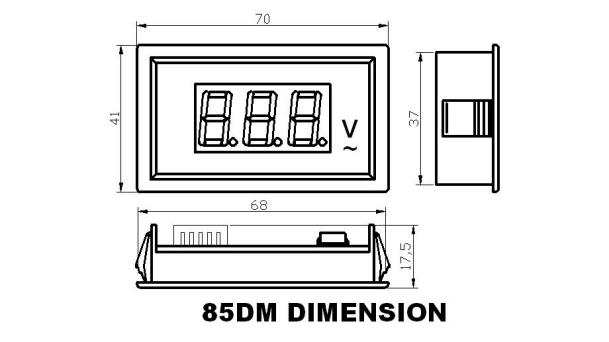

Dimension and Mounting Size

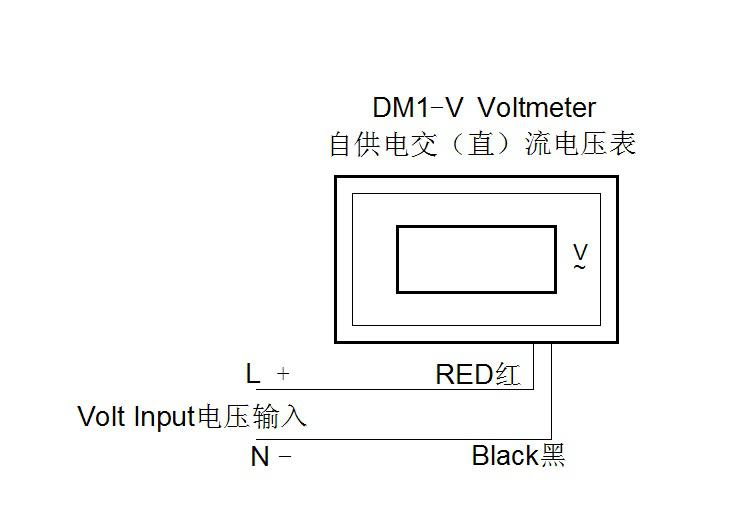

Connection Diagram
