85DM-500V AC (0-500V AC)
Auxiliary Power: 9V AC/DC±10%, <2VA
Accuracy: ±1%± 2LSB
Sample Speed: about 10 times/sec.
Product Description
Specification: 85DM-500V AC (0-500V AC)
Auxiliary Power: 9V AC/DC±10%, <2VA
Accuracy: ±1%± 2LSB
Sample Speed: about 10 times/sec.
LED Size/ Color: 0.56’ Red, Blue, Green for selection
Maximum Display: 500
Over Range: Display 'H'
A/D Converter, Mcu measuring and soft adjusting
85DM series digital voltmeter is an intelligent meter adopting MCU measuring and software adjusting technology. It is cost effective, miniature, flexible, and is useful to voltage stabilizer and other device for measuring voltage and current, and so on. Further this series digital voltmeter can be developed as control unit for stabilizer and other device.

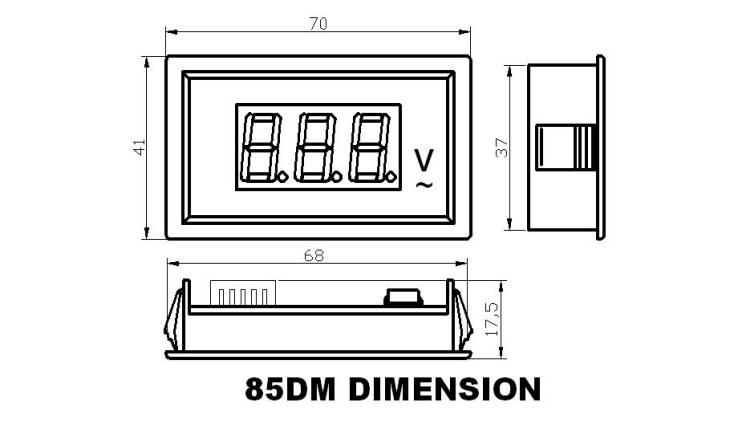

Dimension and Mounting Size

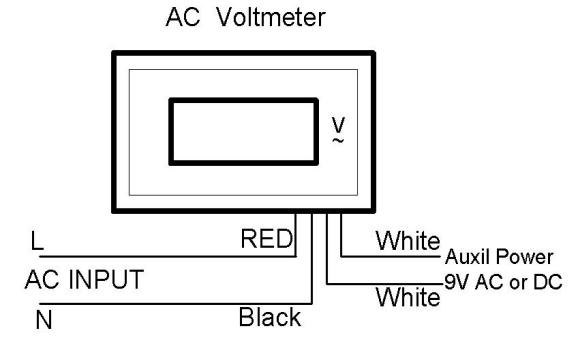

Connection Diagram
