Quick mounting through elastic-holding wings
Accuracy: +/-1% +/-2LSB
Sample Speed: About 10time / sec.
50DM series digital meter use MCU as measure and control unit. It is high accuracy, small size and easy use. This series digital meter can replace traditional analog meters directly to measure voltage& current, and it suit to voltage stabilizer, voltage regulator and other machines.
MAIN SPECIFICATION
| No. | Name | Model | Aux. Power | Note |
| 1 | AC Digital Voltmeter | DM-500V AC | 9V AC | |
| 2 | AC Digital Voltmeter | DMT1-300V AC | 220V AC | N line is common for power and signal |
| 3 | ||||
| 4 | DC Digital Voltmeter | DM-5V DC | 9V AC | |
| 5 | DC Digital Voltmeter | DM-50V DC | 9V AC | |
| 6 | DC Digital Voltmeter | DM-500V DC | 9V AC | |
| 7 | ||||
| 8 | AC Digital Voltmeter | DM1-300V AC | no need | self powered,50V~300V AC |
| 9 | AC Digital Voltmeter | DM1-500V AC | no need | self powered,100V~500V AC |
2. Quick mounting through elastic-holding wings
3. Accuracy: +/-1% +/-2LSB
4. Sample Speed: About 10time / sec.
5. LED Size /Colour: 0. 4" / Red (Green, Blue is selectable)
6. Maximum Display: 500
7. Over Range: Display 'H'
8. A / D Convert &MCU Measure
9. Size: 53*31mm
Mounting Size:50*28mm

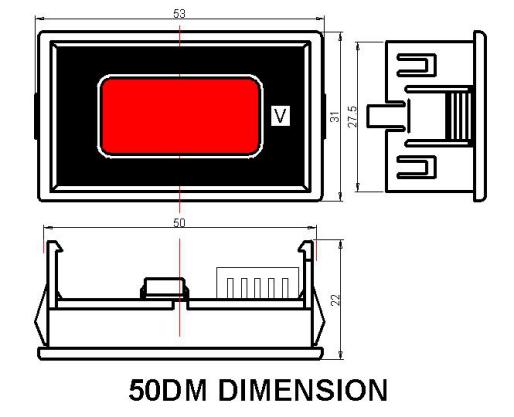

Dimension & Mounting Size
